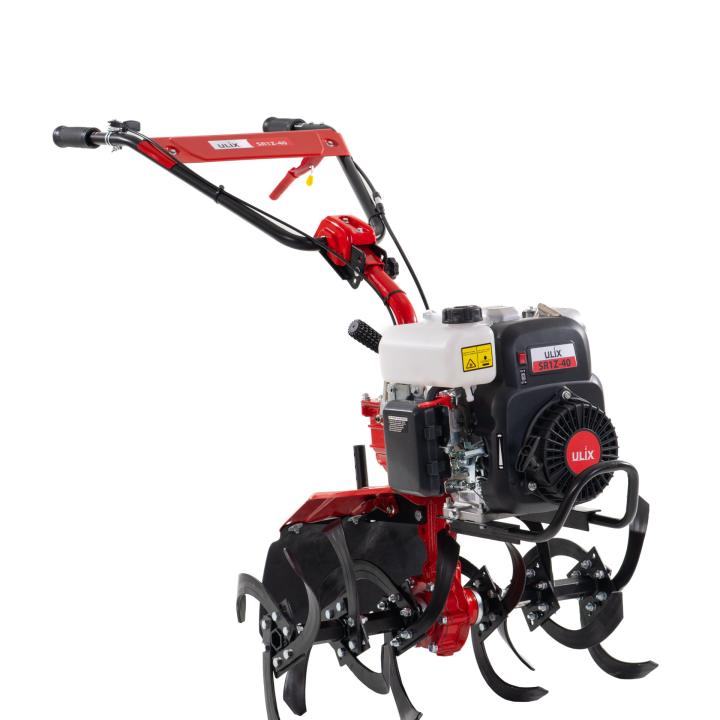

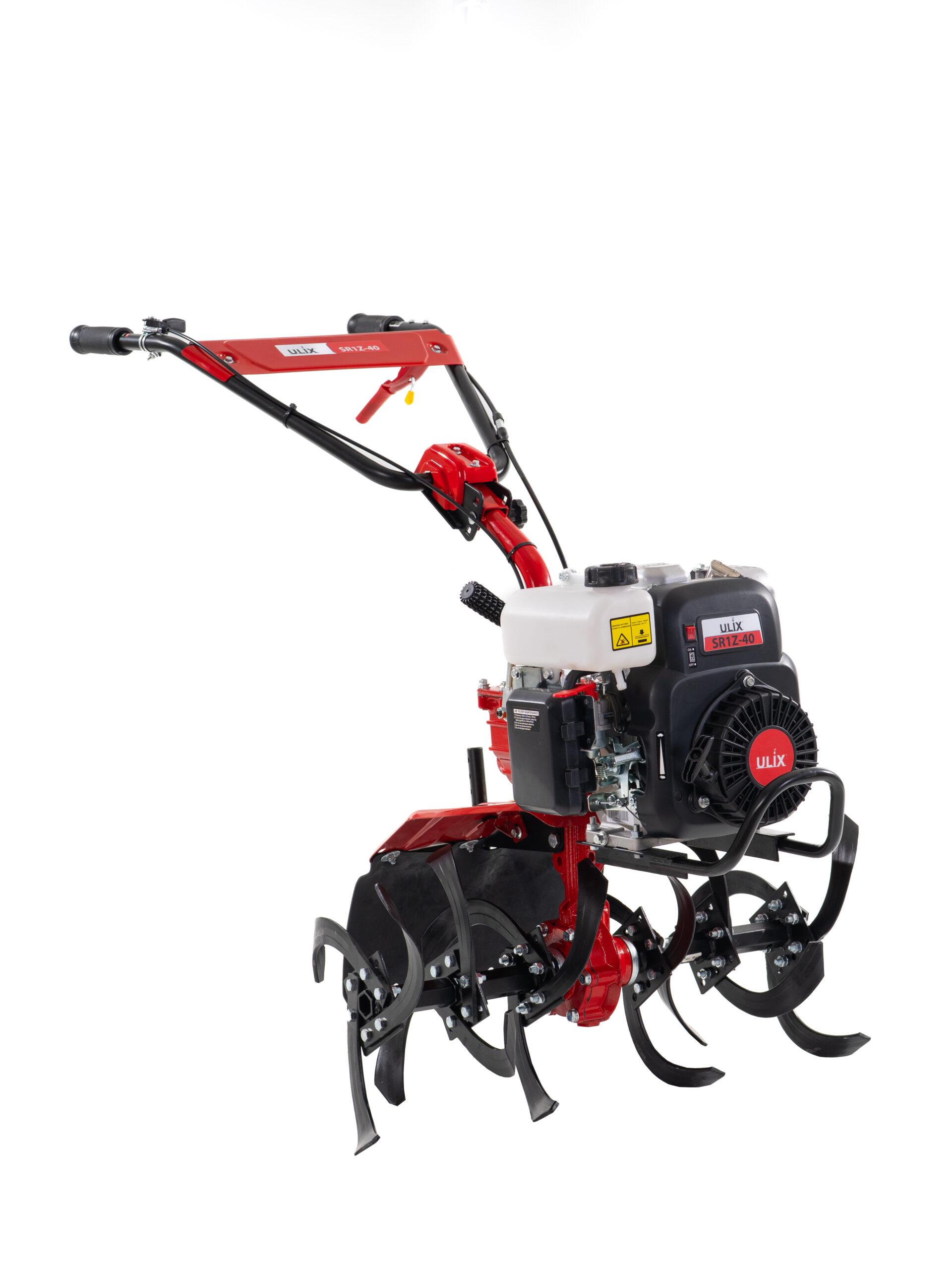

Technical Specifications: SR1Z-40 Power Tiller

1. Engine & Power System

• Engine Type: Single-cylinder, 4-stroke, Air-cooled (OHV).

• Displacement: 140cc - 150cc (Model dependent).

• Max Power Output: 2.5 kW / 3600 rpm (Approx. 3.4 HP).

• Starting System: Recoil Starter (Manual Pull).

• Fuel Type: Unleaded Gasoline (90 Octane or higher).

• Fuel Tank Capacity: 1.2 Liters.

• Oil Capacity: 0.6 Liters (SAE 10W-30 recommended).

2. Tilling & Performance

• Tilling Width: 400 mm (16 inches).

• Tilling Depth: 150 mm – 250 mm (Adjustable).

• Blade Type: 4 Groups of High-tempered Steel Blades.

• Transmission: Worm Gear / Belt Drive (High efficiency).

• Operating Speed: 120 - 150 rpm (Rotary speed).

3. Dimensions & Weight

• Net Weight: 28 kg – 32 kg.

• Gross Weight: 35 kg (Including packaging).

• Packaging Dimensions: 700 x 400 x 480 mm.

• Wheel System: Foldable front transport wheel.
